SWO-U308424 — Wall Pantry - 30"W x 84"H x 24"D - 4D, 5S

Slim Shaker — Wall Pantry - 30"W x 84"H x 24"D - 4D, 5S

SWO
$1,620.00
Skip to product information

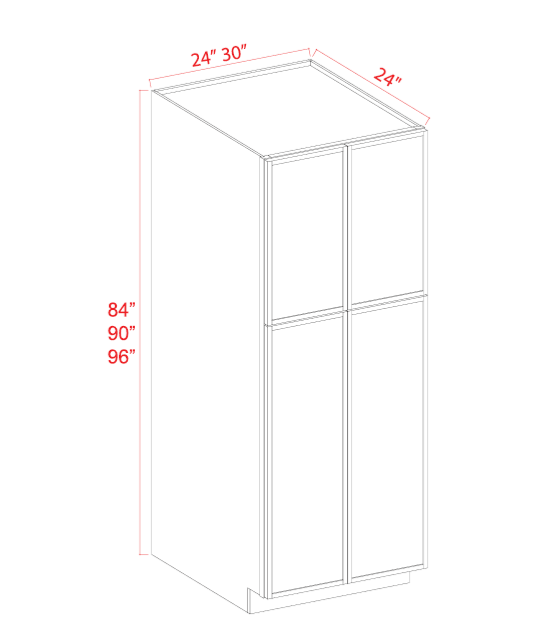

Slim Shaker — Wall Pantry - 30"W x 84"H x 24"D - 4D, 5S — highest-resolution technical cabinet drawing
  • Slim Shaker — Wall Pantry - 30"W x 84"H x 24"D - 4D, 5S — highest-resolution technical cabinet drawing
Slim Shaker — Wall Pantry - 30"W x 84"H x 24"D - 4D, 5S
Slim Shaker

Wall Pantry

Item U308424 30"W x 84"H x 24"D 5 finishes
$1,620.00
Finish

Project review required

Choose a finish, save this cabinet, or send it for an availability and freight review. No payment is collected until the order details are confirmed.

Request availability & quote

Official Aline finish references

See the door. Then see the room.

Compare the actual door profile beside an installed-kitchen view. Use the product drawing above for the exact cabinet configuration and dimensions.

Technical product information

Specifications for every finish SKU.

Dimensions, construction attributes, source categories, weight, and bundle components are organized by finish below.

Wall Pantry - 30"W x 84"H x 24"D - 4D, 5S

Cabinet line: Slim Shaker   Aline item: U308424

Choose a finish and review its exact Aline specifications

Each finish SKU below includes its official Aline description, available dimensions and attributes, source category, weight, and bundle components.

SWO-U308424 — Slim White Oak-U308424
Wall Pantry - 30"W x 84"H x 24"D - 4D - 5S
  • SKU: SWO-U308424
  • Aline product name: Slim White Oak-U308424
  • Aline style: Slim White Oak
  • Aline category: Our Products › Framed Cabinets › Slim White Oak › Oven and Pantry Cabinets › 30" Wide Utility Pantry
  • Weight: 198.2 lb
  • Aline source price: USD 1620
  • Construction specification: Full overlay panel door and drawer front.
  • Construction specification: ¾ inch thick solid wood frame with MDF center.
  • Construction specification: Full overlay door and drawer front.
  • Construction specification: 6-way adjustable European-style hinge with soft-close feature.
  • Construction specification: Shelving is 3/4 inch thick cabinet-grade plywood with front edge banding.
  • Construction specification: Dovetail drawers with solid wood on all sides, full extension
  • Construction specification: Concealed under-mount full extension drawer glides with soft-close feature
  • Construction specification: 1/2 inch cabinet-grade plywood box, UV coated natural plywood on interior
  • Construction specification: Bracket reinforcements for base cabinet
  • Construction specification: Double-doweled face frame joint
  • Construction specification: Hardwood face frame
  • Construction specification: Door bumpers
  • Weight: 198.200000
  • Options Container: Block after Info Column
  • Msrp Display Actual Price Type: Use config
  • Category Type: 30" Wide Utility Pantry
  • Width: 30"
  • Height: 84"
  • Kitchen Cabinet Sort Order: 785.000000
  • Assembly: 20
  • Wesupply Estimation Display: Yes
  • Apply Discount: 1
SDW-U308424 — Slim Dove White-U308424
Wall Pantry - 30"W x 84"H x 24"D - 4D - 5S
  • SKU: SDW-U308424
  • Aline product name: Slim Dove White-U308424
  • Aline style: Slim Dove White
  • Aline category: Our Products › Framed Cabinets › Slim Dove White › Oven and Pantry Cabinets › 30" Wide Utility Pantry
  • Weight: 198.2 lb
  • Aline source price: USD 1350
  • Construction specification: Full overlay panel door and drawer front.
  • Construction specification: ¾ inch thick solid wood frame with MDF center.
  • Construction specification: Full overlay door and drawer front.
  • Construction specification: 6-way adjustable European-style hinge with soft-close feature.
  • Construction specification: Shelving is 3/4 inch thick cabinet-grade plywood with front edge banding.
  • Construction specification: Dovetail drawers with solid wood on all sides, full extension
  • Construction specification: Concealed under-mount full extension drawer glides with soft-close feature
  • Construction specification: 1/2 inch cabinet-grade plywood box, UV coated natural plywood on interior
  • Construction specification: Bracket reinforcements for base cabinet
  • Construction specification: Double-doweled face frame joint
  • Construction specification: Hardwood face frame
  • Construction specification: Door bumpers
  • Weight: 198.200000
  • Options Container: Block after Info Column
  • Msrp Display Actual Price Type: Use config
  • Category Type: 30" Wide Utility Pantry
  • Width: 30"
  • Height: 84"
  • Kitchen Cabinet Sort Order: 785.000000
  • Assembly: 20
  • Wesupply Estimation Display: Yes
  • Apply Discount: 1
SAG-U308424 — Slim Aston Green-U308424
Slim Aston Green - Wall Pantry - 30"W x 84"H x 24"D - 4D - 5S
  • SKU: SAG-U308424
  • Aline product name: Slim Aston Green-U308424
  • Aline style: Slim Aston Green
  • Aline category: Our Products › Framed Cabinets › Slim Aston Green › Oven and Pantry Cabinets › Tall Pantry - 30" Pantry
  • Weight: 188.91 lb
  • Aline source price: USD 1635
  • Door & Drawer Front: Full overlay, 5-piece door & drawer, solid wood with MDF center panel
  • Face Frame: 3/4" solid wood frame
  • Cabinet Box: 1/2" cabinet grade plywood universal box. You may need to order an additional veneer panel to cover any exposed sides.
  • Drawer Box: Solid wood, dovetail construction, 3 1/8" depth
  • Drawer Glides: Concealed undermount full extension glides with soft-close feature
  • Hinges: 6-way adjustable with soft-close feature
  • Exterior Finish: Clear UV coated natural plywood. Need to add BSV, WSV, and USV for exposed parts.
  • Interior Finish: Clear UV coated natural plywood
  • Shelves: 3/4" thick plywood with front edge banding
  • Accessories: Door bumper, metal shelf pin, metal clips, L bracket for base cabinet
  • Package: Two boxes packages, universal box & front set.
  • Certification: TSCA VI, KCMA, CARB2, NGBS Green
  • Weight: 188.910000
  • Options Container: Block after Info Column
  • Msrp Display Actual Price Type: Use config
  • Price Type: 1
  • Sku Type: 1
  • Weight Type: 1
  • Price View: As Low as
  • Shipment Type: Separately
  • Category Type: 30" Wide Utility Pantry
  • Width: 30"
  • Height: 84"
  • Kitchen Cabinet Sort Order: 770.000000
  • Assembly: 20
  • Wesupply Estimation Display: Yes
  • Shipping Class: 50.0
  • Exclude Ups: 1
  • Mp Exclude Sitemap: Yes
  • Apply Discount: 1
Bundle components
  • SAG-U308424: UBX-U308424 × 1, SAG-DS-U308424 × 1 (optional)
SIB-U308424 — Slim Iron Black-U308424
Slim Iron Black - Wall Pantry - 30"W x 84"H x 24"D - 4D - 5S
  • SKU: SIB-U308424
  • Aline product name: Slim Iron Black-U308424
  • Aline style: Slim Iron Black
  • Aline category: Our Products › Framed Cabinets › Slim Iron Black › Oven and Pantry Cabinets › Tall Pantry - 30" Pantry
  • Weight: 188.91 lb
  • Aline source price: USD 1635
  • Door & Drawer Front: Full overlay, 5-pieces door & drawer, solid wood with MDF center panel
  • Face Frame: 3/4" solid wood frame
  • Cabinet Box: 1/2" cabinet grade plywood box
  • Drawer Box: Solid wood, dovetail construction, 3 1/8" depth
  • Drawer Glides: Concealed undermount full extension glides with soft-close feature
  • Hinges: 6-way adjustable with soft-close feature
  • Exterior Finish: Matching color exterior
  • Interior Finish: Clear UV coated natural plywood
  • Shelves: 3/4" thick plywood with front edge banding
  • Accessories: Door bumper, metal shelf pin, metal clips, L bracket for base cabinet
  • Package: One box per cabinet
  • Certification: TSCA VI, KCMA, CARB2, NGBS Green
  • Weight: 188.910000
  • Options Container: Block after Info Column
  • Msrp Display Actual Price Type: Use config
  • Price Type: 1
  • Sku Type: 1
  • Weight Type: 1
  • Price View: As Low as
  • Shipment Type: Separately
  • Category Type: 30" Wide Utility Pantry
  • Width: 30"
  • Height: 84"
  • Kitchen Cabinet Sort Order: 770.000000
  • Assembly: 20
  • Wesupply Estimation Display: Yes
  • Shipping Class: 50.0
  • Exclude Ups: 1
  • Mp Exclude Sitemap: Yes
  • Apply Discount: 1
Bundle components
  • SIB-U308424: SIB-DS-U308424 × 1, UBX-U308424 × 1 (optional)
SAO-U308424 — Slim Amber Oak-U308424
Slim Amber Oak - Wall Pantry - 30"W x 84"H x 24"D - 4D - 5S
  • SKU: SAO-U308424
  • Aline product name: Slim Amber Oak-U308424
  • Aline style: Slim Amber Oak
  • Aline category: Our Products › Framed Cabinets › Slim Amber Oak › Oven and Pantry Cabinets › Tall Pantry - 30" Pantry
  • Weight: 188.91 lb
  • Aline source price: USD 1620
  • Door & Drawer Front: Full overlay, 5-pieces door & drawer, solid wood with MDF center panel
  • Face Frame: 3/4" solid wood frame
  • Cabinet Box: 1/2" cabinet grade plywood box
  • Drawer Box: Solid wood, dovetail construction, 3 1/8" depth
  • Drawer Glides: Concealed undermount full extension glides with soft-close feature
  • Hinges: 6-way adjustable with soft-close feature
  • Exterior Finish: Matching color exterior
  • Interior Finish: Clear UV coated natural plywood
  • Shelves: 3/4" thick plywood with front edge banding
  • Accessories: Door bumper, metal shelf pin, metal clips, L bracket for base cabinet
  • Package: One box per cabinet
  • Certification: TSCA VI, KCMA, CARB2, NGBS Green
  • Weight: 188.910000
  • Options Container: Block after Info Column
  • Msrp Display Actual Price Type: Use config
  • Price Type: 1
  • Sku Type: 1
  • Weight Type: 1
  • Price View: As Low as
  • Shipment Type: Separately
  • Category Type: 30" Wide Utility Pantry
  • Width: 30"
  • Height: 84"
  • Kitchen Cabinet Sort Order: 770.000000
  • Assembly: 20
  • Wesupply Estimation Display: Yes
  • Shipping Class: 50.0
  • Exclude Ups: 1
  • Mp Exclude Sitemap: Yes
  • Apply Discount: 1
Bundle components
  • SAO-U308424: SAO-DS-U308424 × 1, UBX-U308424 × 1 (optional)

We confirm inventory and lead time for the selected finish SKU before accepting the order.
